YP-RP5WCS3 5 Circuit Wireless Serious Complete System
- Integrated RF/Bluetooth Control
- Last Mode Memory:The system remembers which circuits were ON when Master Power is used to turn the entire system OFF. Then when the system is turned back ON using the Master Power button, all of the “Last Mode” circuits will also be turned back on.

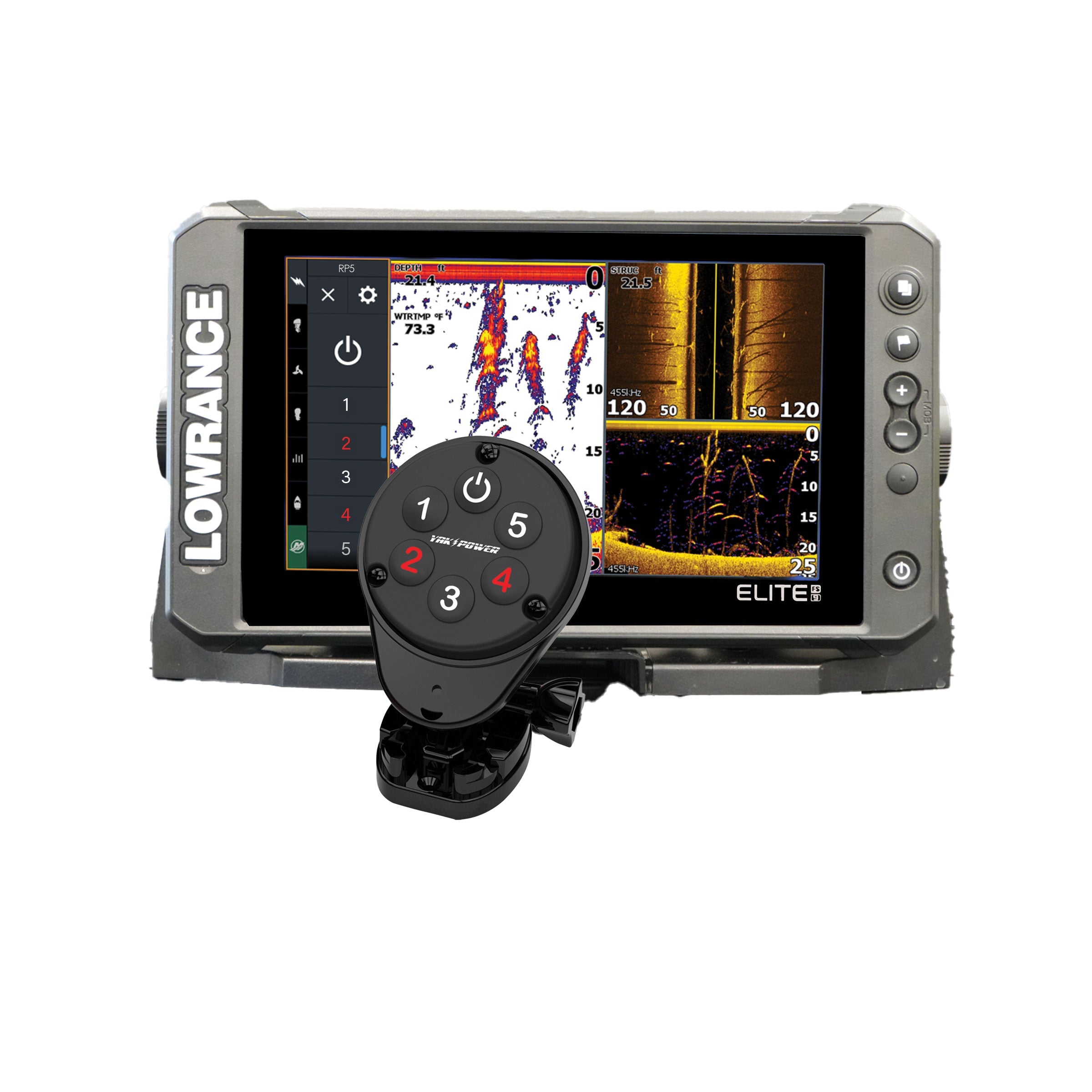

- Wirelessly Compatible with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs (requires new software release from Lowrance expected in Q1 2025)
- Keypad action mount with t-nut for rail mounting.
- Remote Lanyard and optional surface mount included

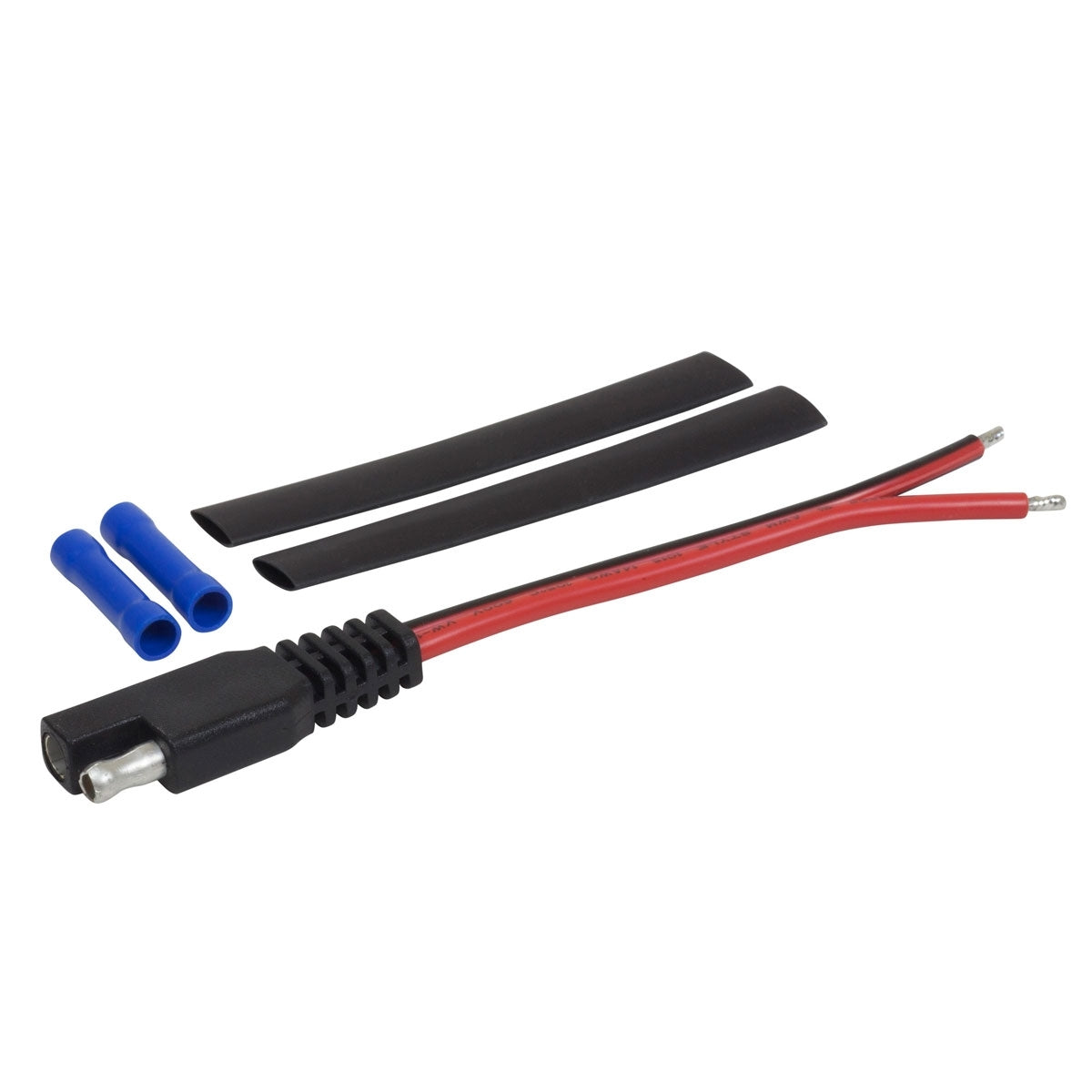

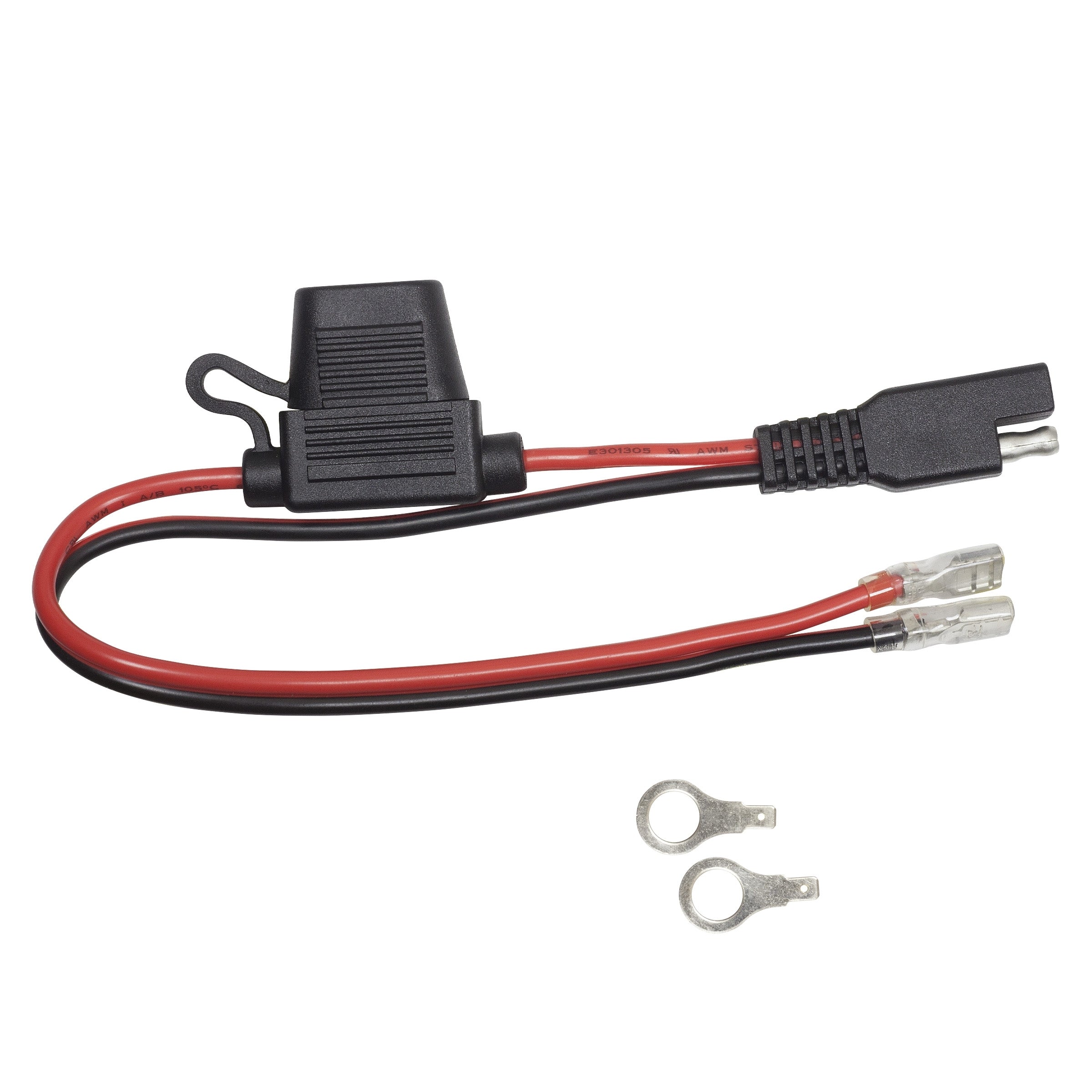

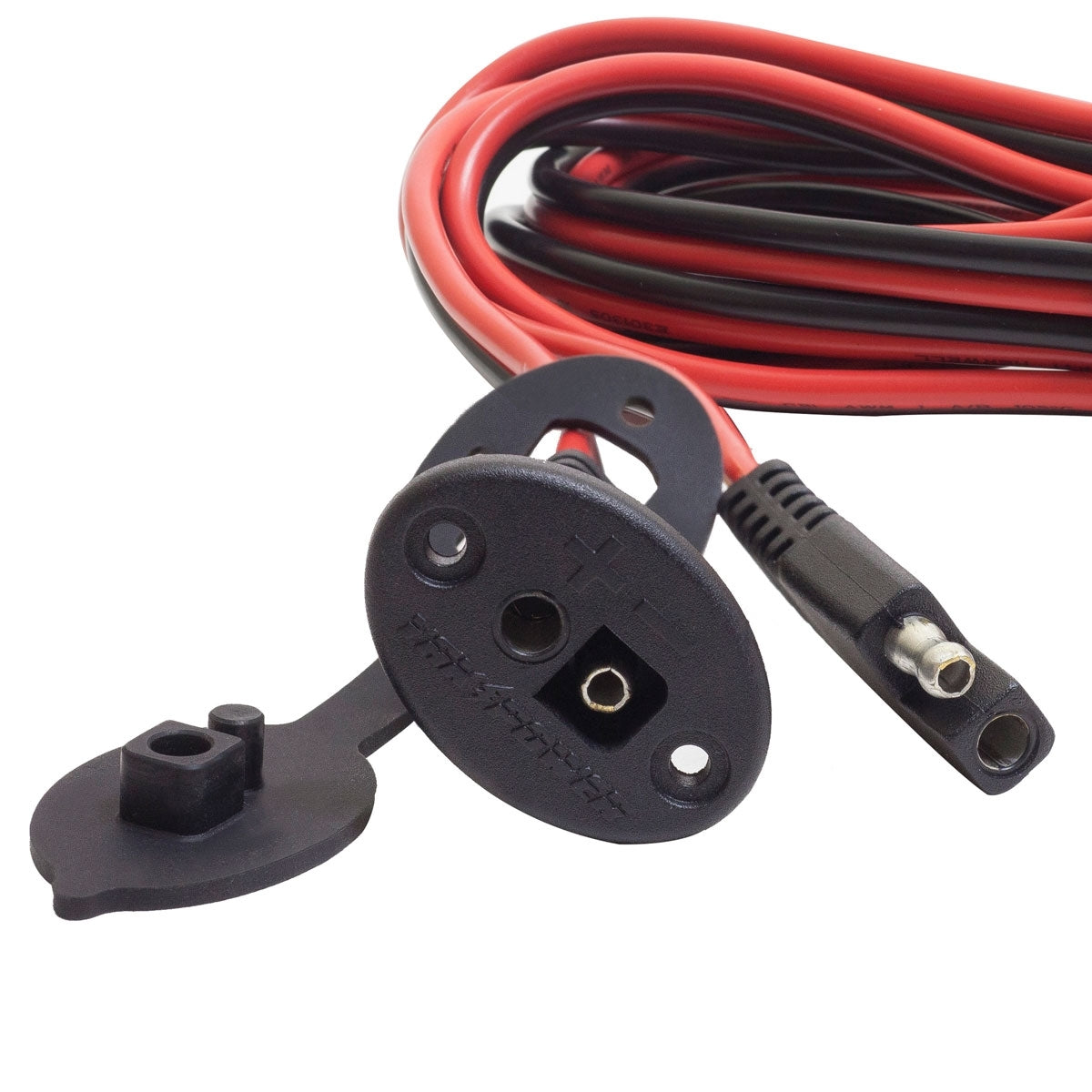

- Kit Includes: (1) YP-RP5WR Wireless Power Panel Switching System, (1) YP-PMC48S Power Port with 4ft. wire – Mid-ship, (2) YP-PMC96S Power Port with 8ft. wire – Bow, Stern, (1) YP-BTP12 Battery Pigtail – 12”, (3) YP-SAE4 Power Plug accessory connectors
For anglers that are serious about rigging their kayak for electronics but don’t want to drill a large hole for the keypad this system offers totally wireless rigging and control!

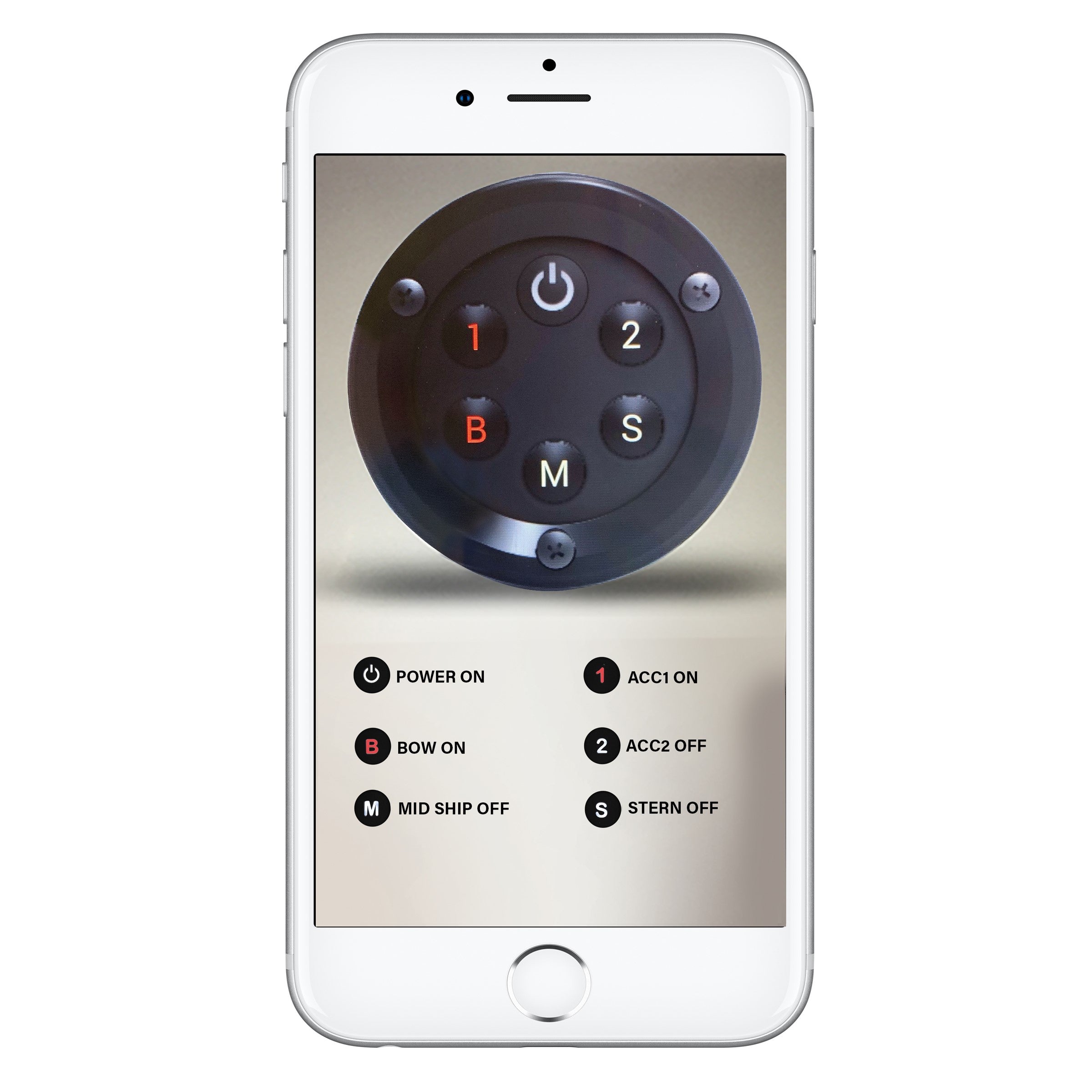

The NEW YP-RP5WR features five switched outlets, battery powered keypad with quick disconnect base and a t-nut rail track mounting option, integrated Bluetooth with mobile app control, last memory mode, inline 15A fuse, and Yak Power plug-and-play connectivity.
This completely wireless Power Panel switching system is designed to make it quick and easy for you to connect your fish finder, bait well pump, LED lighting, phone charger, and any other 12v accessory you need out on the water. All accessories are connected and controlled independently using individual buttons. Each button turns RED when it is activated. And, the Master Power switch allows you to completely power up-down the entire system to minimize your power consumption while out on the water. . Yak Power lets you spend less time rigging and more time fishing.
And like the original SERIOUS Complete System, this system comes with three Power Ports (bow, mid-ship, stern), a battery terminal pigtail and three Power Plug accessory connectors. You don’t need anything else other than a battery to power up your kayak, and connecting it all together is quick and easy with our plug-and-play connectors. We’ve even included two extra accessory outlets on the Power Panel switcher for LED lights or any other accessories you want to add.
Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer or other high current electronic 12V device you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to insure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
Note: Make sure the plug-and-play connectors are completely pushed together when connecting the system together. Yak-Power uses our own custom tooled, high tolerance, very snug fitting connectors with larger gauge, real copper wire to ensure a quality, weatherproof and reliable connection.
All our plug-and-play accessories are specifically designed to work together while maintaining the correct battery polarity throughout the entire Yak-Power system. Using other aftermarket connectors or splicing other connectors into the YP system may cause damage to the system or the accessories connected to the system and may void your warranty.
Caution: Make sure to pay attention to the actual wire colors of all our accessory cables to ensure that the red (+) wire is always connecting to the red (+) wire on the connector into which it is being plugged.
Support Materials
|
Specifications
- Wire Gauge 14 AWG
- MPN YP-RP5WCS3
